SPECIAL ALLOYS EUROPE LTDis a leading Stainless steel bright bar manufacturer in India. Stainless steel bar beside having the characteristics or corrosions resistance has been developed over time to encapsulate end user applications. SPECIAL ALLOYS EUROPE LTDLimited produces Improved Machining (IM) grades that were developed to enhance machining of the steel into components, grades for hardness by responding to heat treatment and grades with high corrosion qualities by adding additional elements to give it the characteristics desired.
SPECIAL ALLOYS EUROPE LTDproduces bright bars with a comprehensive range of stainless steel grade and sizes of stainless steel bright bar to cover most machining and structural applications.
SPECIAL ALLOYS EUROPE LTDis a pioneer in export quality stainless steel bright bars manufactured in India which sizes ranging from 4 mm to 100 mm (3/16 inch to 4 inches) diameter. We produce high ductility bolstering steel to avoid brittle failures while ensuring a high degree of safety. Our products are globally exported to more than 50 countries in greater than 100 steel grades.
| Size range | 5 mm to 100 mm (3/16 inch – 4 inch) | ||||
| Size Tolerances | h9, h10, h11, k12, k13, A-484, EN-10060, DIN-1013 etc. | ||||
| Length | 2 metres to 6 metres | ||||
| Chamfering | Available in 30° to 60° through fully automatic both-end chamfering machine | ||||
| Crack Test | Magnetic Particle Inspection (MPI) | ||||
| Ultrasonic Test | 100% tested through Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154 |
||||
| Length Tolerance | Available in special cut to length bars in tolerance -0/+10 mm (-0/+0.5 inch) | ||||
| Straightness | Up to 0.25 mm/metre TIR (0.0015 inch/feet) | ||||
| Surface Finish | Centreless Ground & Belt Polished up to Ra value 0.2 microns (12 RMS) and 24 – 320 Grit Polished | ||||
| Heat Treatment | Annealed, Solution Annealed, Quenched & Tempered (QT), Double Ageing/Double Tempering |
| Grade | Specification |
|---|
| Monel 400 N04400 | B/SB164 |
| Inconel 600 N06600 | B/SB166 |
| Inconel 625 N06625 | B/SB446 |
| Incoloy 800 N08800 | B/SB408 |
| Incoloy 800H N08810 | B/SB408 |
| Incoloy 800HT N08811 | B/SB408 |
| Incoloy 825 N08825 | B/SB425 |
| Alloy | DN Trade Name | Material No. | UNS Specification | ASTM Specification | DIN Specification |

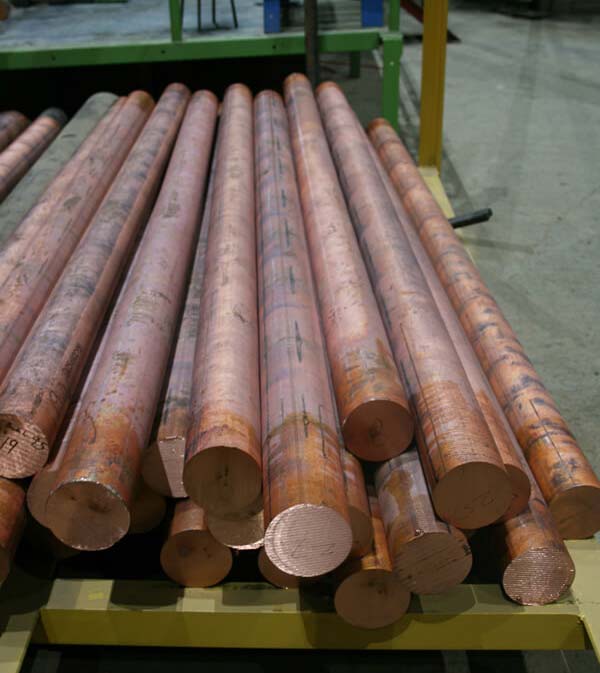

| CuNi10Fe1Mn | CuNi10Fe1Mn | (2.0872) / (CW352H) | C70600 | ASTM B151 | |
| CuNi30Mn1Fe | CuNi30Mn1Fe | (2.0882) / (CW354H) | C71500 | ASTM B151 | |
| CuNi44Mn1 | Vernicon | (2.0842) | C72150 | ASTM B151 | (DIN 17471) |
Specialty Metals Grades: |
|---|
| Stainless 310 Alloy 20 Stainless 410 Duplex 2205 Inconel 625 Stainless 254 SMO Nuclear Materials Duplex A790 UNS 31803 Alloy 625 |
Stainless 317 Stainless 309 Stainless 347H 6 Moly Alloy Incoloy 800H Nickel Alloys Military Specs Alloy 400 |
Stainless 321 Stainless 310H Low Temp A333 Grade 1 AL6XN Incoloy 800Ht Special Melts Alloy 800 Cu/Ni 90/10 2205 |
Stainless 347 Stainless 317 Low Temp A333 Grade 3 Monel 400 Titanium Grade 2 Copper Alloy 825 Cu/Ni 70/30 254SMO |
Stainless410 Stainless 321H Low Temp A333 Grade 6 Inconel 600 Hastelloy C276 Titanium Alloy 600 EU PED 97/23/EC A335 P92 |
The major factors that validate the outstanding properties of our bright bars are:
Committed to building long-term relationships with our esteemed clients, SPECIAL ALLOYS EUROPE LTDmakes use of the state-of-the-art technology deployed by the choicest players in the modern steel making industry to manufacture top-notch quality stainless steel bars. Our heat treatment and metallurgical processes are carried out under one roof to ascertain effective engineering support and timely product development.
To ascertain tight adherence to the indicated material properties, we have:
Our state-of-the-art production facilities located in Uttar Pradesh and New Delhi warrant highest quality standards, of manufacturing bright bar in India, as desired by our customers. Supported by well-defined work schedules and accurate input data, SPECIAL ALLOYS EUROPE LTDensure continuous quality checks to produce high quality engineered stainless steel products that are 100% free from internal defects.
Our Bright Bars manufacturers in India cover most of the structural and machining applications, as well as are widely used in a wide array of industries, including:
✓ Railways
✓ Electric Motors & Pumps
✓ Agriculture
✓ Automobiles
✓ Hoses & Fittings
✓ Mining
✓ Shaft Making
✓ Miscellaneous Fabrication Jobs
Our ultra-modern production facilities employ a series of modern and cutting-edge steel making technology to control production system in line with the tight adherence to steel properties like its mechanical values and purity levels. The streamlined quality manufacturing process followed by our production facilities has helped us gain the reputation of top-quality Stainless Steel Bright Bars manufacturers and exporters in India and abroad. We supply products in various grades, such as Stainless Steel 303, Stainless Steel 304, Stainless Steel 316, Stainless Steel 420, Stainless Steel 431, and Stainless Steel 2205.
The chart below gives brief descriptions of the more popular grades of Stainless Steel round bar.
| Grade | Description | |||
|---|---|---|---|---|
| 303 | 303 grade represents the optimum in machining among the austenitic stainless steels. It is primarily used when production involves extensive machining. 303 is available in Improved Machining grade with machining characteristics significantly higher than that of the standard 303. | |||
| 304 | 304 grade is dual certified as for grade 304 and 304L. Grade 304 is the standard “18/8” stainless. It has excellent forming and welding characteristics. Grade 304L, the low carbon version of 304, does not require post-weld annealing and so is extensively used in heavy gauge components. 304 is available in Improved Machining grade with machinability significantly higher than that of the standard 304. | |||
| 316 | 316 grade is dual certified as for grade 316 and 316L. 316 is the standard molybdenum-bearing stainless steel, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments. It has excellent forming and welding characteristics. 316 is available in Improved Machining grade with machinability significantly higher than that of the standard 316. | |||
| 420 | 420 grade can be hardened by quench-and-temper heat treatment. It contains a minimum of 12 percent chromium, just sufficient to give corrosion resistance properties. It has good ductility in the annealed condition but is capable of being hardened up to Rockwell Hardness 50HRC, the highest hardness of the 12 percent chromium grades. Its best corrosion resistance is achieved when the metal is hardened and surface ground or polished. 420 is available in Improved Machining grade with machinability significantly higher than that of the standard 420. | |||
| 431 | 431 grade is a heat treatable martensitic, nickel-bearing grade has the best corrosion resistance properties of all the martensitic grades. It has excellent tensile and torque strength, and good toughness, making it ideally suited to shafting and bolt applications. It can be hardened to approximately 40HRC. Because of its high yield strength, this grade is not readily cold worked and is therefore not recommended for use in operations such as cold heading, bending, deep drawing or spinning. 431 is available as in Improved Machining grade with machinability significantly higher than that of the standard 431. | |||
| 2205 | 2205 grade is the most widely used duplex (ferritic/austenitic) stainless steel grade. It finds applications due to both excellent corrosion resistance and high strength. | |||
The above series offer excellent quality bright round bars at highly competitive and affordable prices |
||||
Key Features of Bright Bars Some of the important characteristics of our Bright Bars include: ✓ Corrosion Resistant ✓ High Tensile Strength even at higher temperatures ✓ 100% purity levels ✓ Develop stainless steel under precise monitoring and supervision in the electric melting furnaces ✓ Detailed inspection at multiple production stages to feature end-user applications ✓ The thorough assessment of all input materials to ensure desired specifications as desired by the customer ✓ Controlled Shaping, Systematic melting, and & Heat Treatments ✓ Monitored metallurgical operations ✓ IM (Improved Machining) grades to ensure stainless steel hardness with high corrosion qualities ✓ 100% Inspection through Digital Ultrasonic Flaw Detector to determine internal defects ✓ Leverage ultra-modern technological innovations to manufacture the most updated range of Bright Round Bars ✓ State of the art mechanical laboratory with Bar Hot Rolling Mill using 6 and 4 stand to incorporate innovatively geometric designs of the Bright Round Bars stainless steel ✓ Statistical monitoring of results to facilitate systematic elimination of deviations, if any.
