Buttweld Fittings & Tubes

HomeProducts

Buttweld Fittings & Tubes

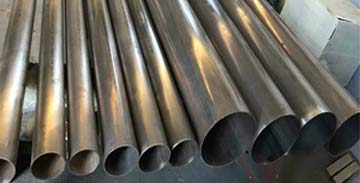

Pipes


Special industry expertise: Our tubes and buttweld fittings ensure safety and economic efficiency. With our experience, technical expertise and innovative power, we provide solutions wherever high requirements must be met, including the following:

  • Construction and building supply industry
  • Automotive, commercial vehicle and bus construction
  • Machinery
  • Renewable energies
  • Aerospace industry
  • Fitting and lock technologies
  • Storage technologies

Nickel Alloy Pipe

Grade Specification
Monel 400 N04400 B/SB165
Inconel 600 N06600 B/SB167
Inconel 625 N06625 B/SB444, B/SB704
Incoloy 800 N08800 B/SB407
Incoloy 800H N08810 B/SB407
Incoloy 800HT N08811 B/SB407

Specialty Metals


Grades:
Stainless 310
Alloy 20
Stainless 410
Duplex 2205
Inconel 625
Stainless 254 SMO
Nuclear Materials
Duplex A790 UNS 31803
Alloy 625		 Stainless 317
Stainless 309
Stainless 347H
6 Moly Alloy
Incoloy 800H
Nickel Alloys
Military Specs
Alloy 400		 Stainless 321
Stainless 310H
Low Temp A333 Grade 1
AL6XN
Incoloy 800Ht
Special Melts
Alloy 800
Cu/Ni 90/10
2205		 Stainless 347
Stainless 317
Low Temp A333 Grade 3
Monel 400
Titanium Grade 2
Copper
Alloy 825
Cu/Ni 70/30
254SMO		 Stainless410
Stainless 321H
Low Temp A333 Grade 6
Inconel 600
Hastelloy C276
Titanium
Alloy 600
EU PED 97/23/EC
A335 P92

Copper & Copper Nickel Pipe

Copper Alloy  ASTM B 280 ASME SB 280
Cupro Nickel Cupro Nickel 90 / 10 , Cupro Nickel 70 / 30
Product Types
  • Welded Tubing
  • Cold Drawn - Welded
  • Cold Drawn - Seamless
ALLOY / GRADE
  • Carbon Tubing
  • Nickel Alloys
  • Specialty Alloys
  • Stainless
  • Titanium
TUBING APPLICATIONS
  • Air Cooler
  • Air Heater
  • Boiler Tube
  • Coiled Tubing
  • Steam Surface Condenser
  • Feed Water Heater
  • Heat Exchanger
  • Instrumentation Tubing
  • Original Equipment Mfgr (OEM)
  • Welded Pipe
  • Pressure Tubing
  • Specialty Stainless Tubing
PRODUCT CHARACTERISTICS
  • Fatigue Life
  • Formability
  • Machinability
  • Orbital Welding
  • Precision Tolerancing
  • Straightness / Total Indicator Run-out
  • Surface Finish
VALUE-ADDED SERVICES
  • Bending
  • Custom Mill Lengths
  • End Formed / Swaged
  • Finning
  • Heat Treating
  • Packaging
  • Precision Cutting
  • Product Availability
  • Responsivenes

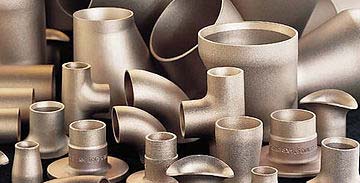

Buttweld Fittings


Nickel Alloy Pipe Fittings

Grade Specification
Monel 400 N04400 B/SB366, SB564
Inconel 600 N06600 B/SB366, SB564
Inconel 625 N06625 B/SB366
Incoloy 800 N08800 B/SB366, SB564
Incoloy 800H N08810 B/SB366, SB564
Incoloy 800HT N08811 B/SB366

Copper & Copper Nickel Pipe Fittings

Copper Alloy  ASTM B62 / ASME SB62
Cupro Nickel Cupro Nickel 90 / 10 , Cupro Nickel 70 / 30

Buttweld Fitting
Sr. No.
Material
Size
(in mm)
Sch. & Swg.
Specification
Items
1
Seamless
15 NB
to
300 NB
Sch. 5
to
Sch. XXs
A-403 B/W
ANSI B16.9
Bend (Long & Short)
R=2D,3D,5D,10D Etc
Elbow ( 180o, 90o & 45o)
Tee (Equal & Unequal)
Reducer (Con & Ecc)
CAP
Stubend (Long & Short)
Nipple (Barrel)
2
Welded [ERW]
15 NB
to
600 NB
Sch. 5
to
Sch. 80s
A-403 B/W
ANSI B16.9

Note:-
Grade Carbon, Nickel Alloys, Specialty Alloys, Stainless, Titanium
Copper Nickel Grade UNS No. C70600 (Cu-Ni- 90/10), C71500 (Cu-Ni- 70 / 30)
MATERIAL CODE EEMUA 146 UNS 7060X/BS2871 / BS2875 CN 102/ASTM B466 / 171 C70600 DIN 86088 / DIN 86089 / DIN 86090 / 28011 CuNi10Fe 51.6Mn/BS EN 12449 / BS EN 1652 CW352H
Value Added Service Polish (Electro & Commercial)
Heat Treatment
Annealed & Pickled,		 Sand Blasting
Machining Etc.
Other Form Dairy Fitting
Test Certificate
 With Manufacturer Test Certificate
Under Third Party Inspection
Specialize Long Bend with Radius – R = 3D, 5D & 10D
Pigabble Bend & As per your drawing
